Features:

The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
Rugged, die-cast enclosure provides NEMA 4 sealing
Switch-selectable pressure ranges, fewer models to order and stock
Pushbutton and remote zero adjustment, maintain accuracy and reduce callbacks with automatic zero calibration
Jumper-controlled electronic surge dampening for high stability
Mounted bypass assembly
Electronic, 5 s averaging surge damping
Overrides output to full scale (20 mA, 5 V, 10 V) test mode
Pushbutton auto-zero and digital input (2-position terminal block) zero adjust
Dual-color LED: green = normal, green blinking = low greater than high, red = over range, red blinking = overpressure status indication
Media compatible with 17 to 4 PH stainless steel
Maximum 2x full scale range proof pressure
Maximum 5x full scale range burst pressure

Specifications:

Manufacturer: Veris Industries
Manufacturer Part Number: PWLX05BP

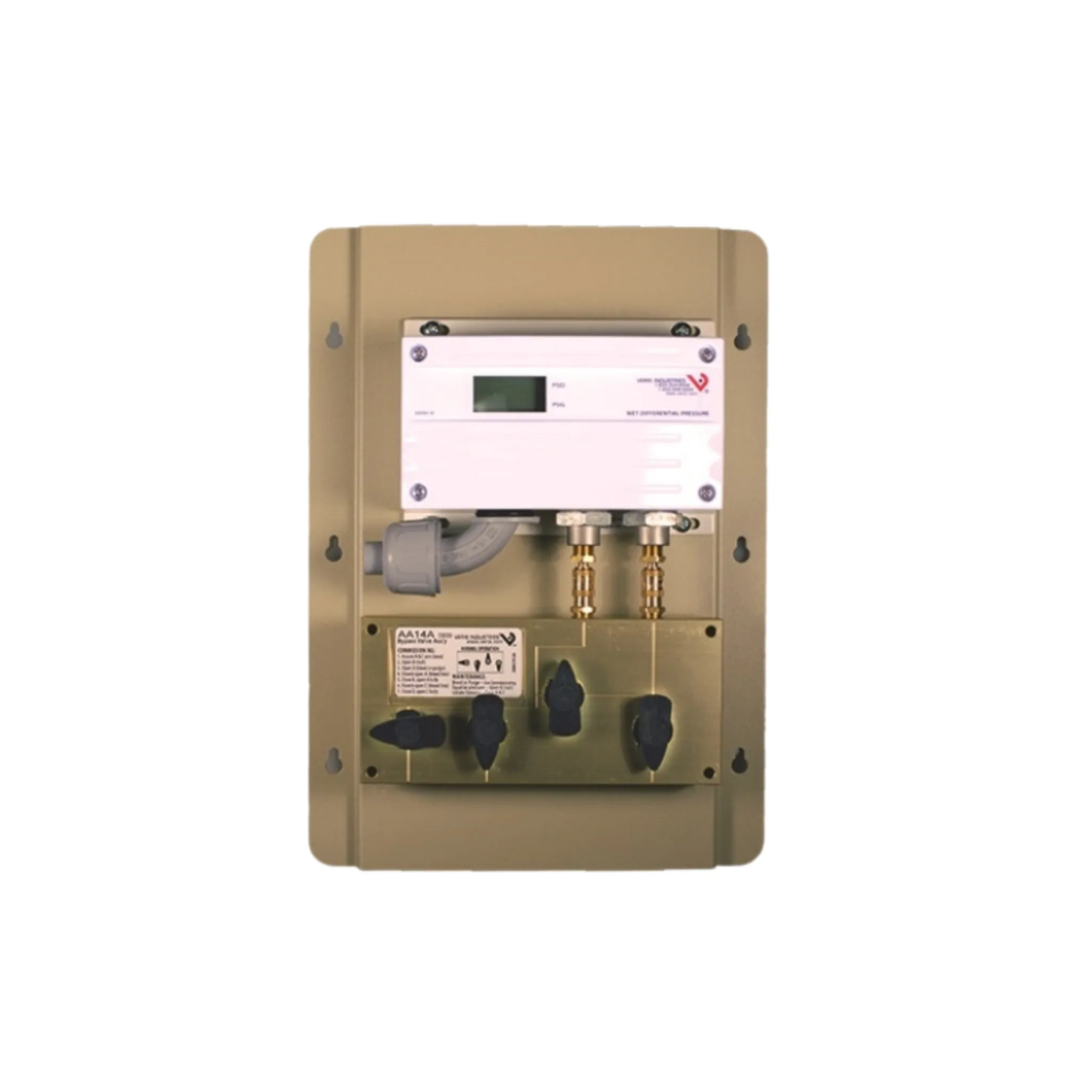

Product Type: Wet Media Differential Pressure Transducer
Supply Voltage AC Nominal: 24 VAC
Supply Voltage DC Range: 15-30 VDC
Pressure Measurement Range: 0-25 PSI, 0-50 PSI, 0-100 PSI, 0-250 PSI
Temperature Rating: 14 to 122 Degrees F
Operating Humidity: 0 to 90% RH
Electrical Wiring: 3 Wires
Mounting: Panel
Dimensions: 9.5" x 14.95" x 2.95"
Weight: 4.77 lb.
