The Big Easy Kit

Name: THE BIG EASY KIT: SUTTNER ST-160 CHEM-X FOAM LANCE
SKU: 531414

The Big Easy Foam Injection Kit was designed for simplicity and ease of use in mind. This is the ideal injection kit to apply a single soap via foam without having to think about ratios, mixing or refilling. With the addition of the Chem-X Foam Lance you get full control of foam or rinse at the gun without having to go back to the power washer. It does not get much easier than that!

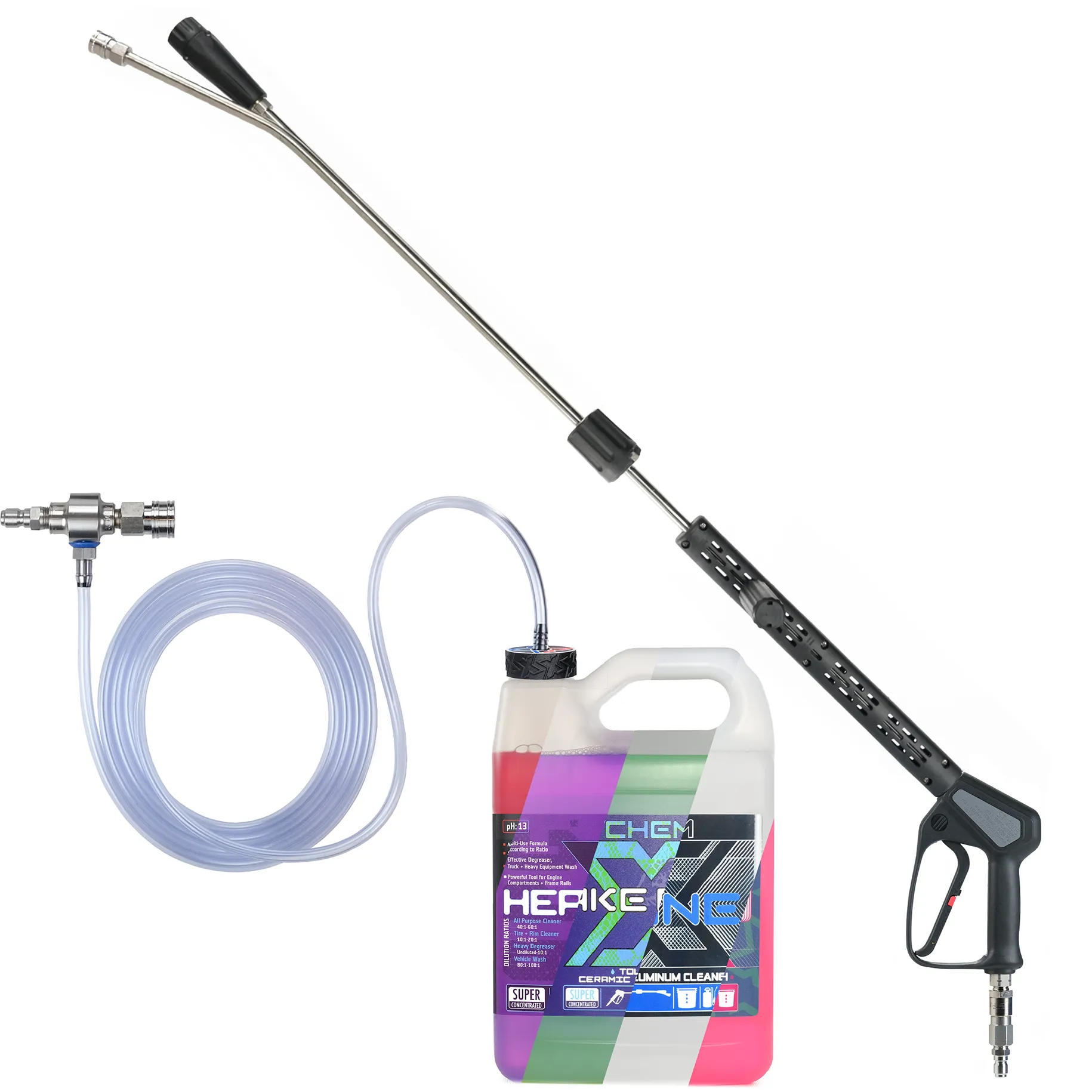

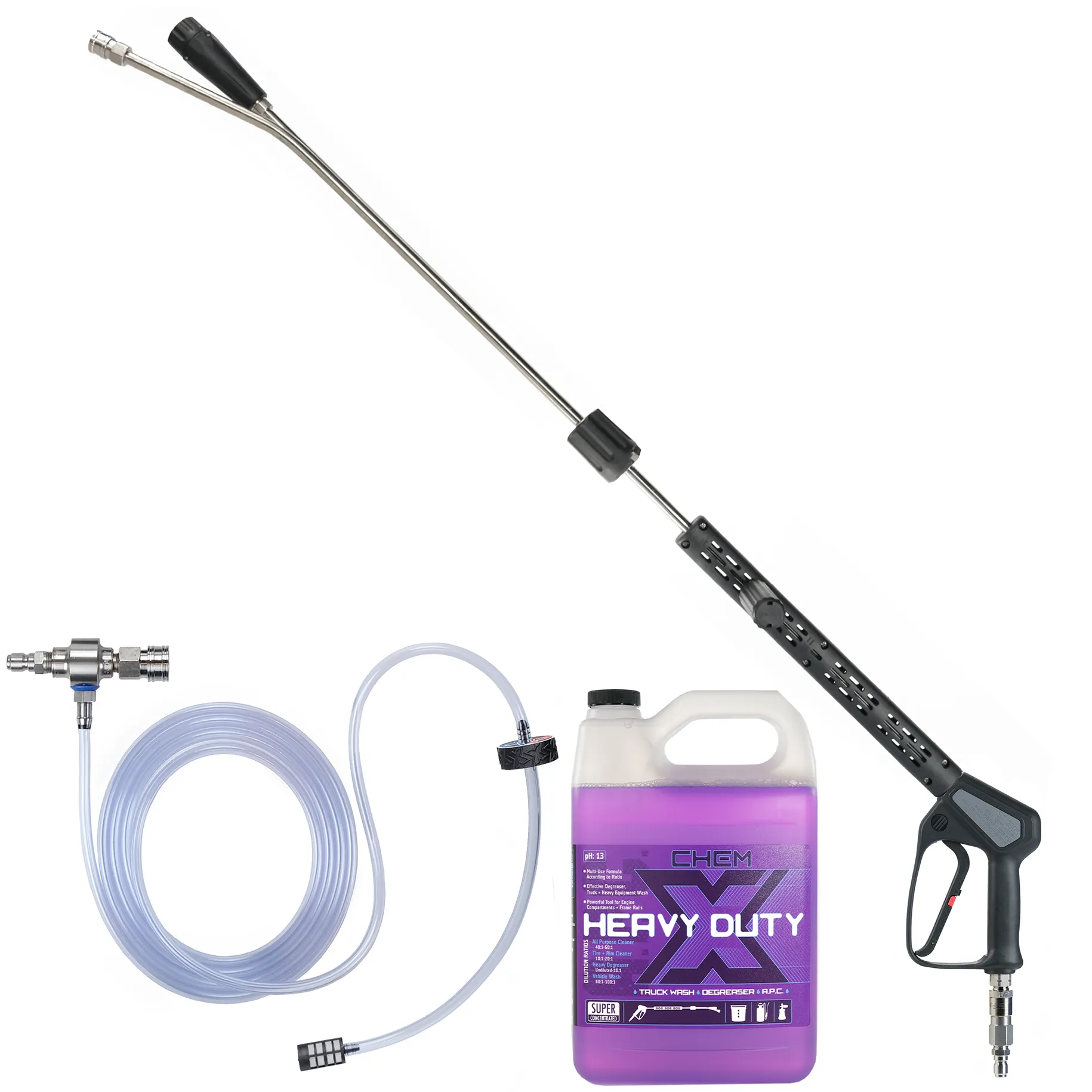

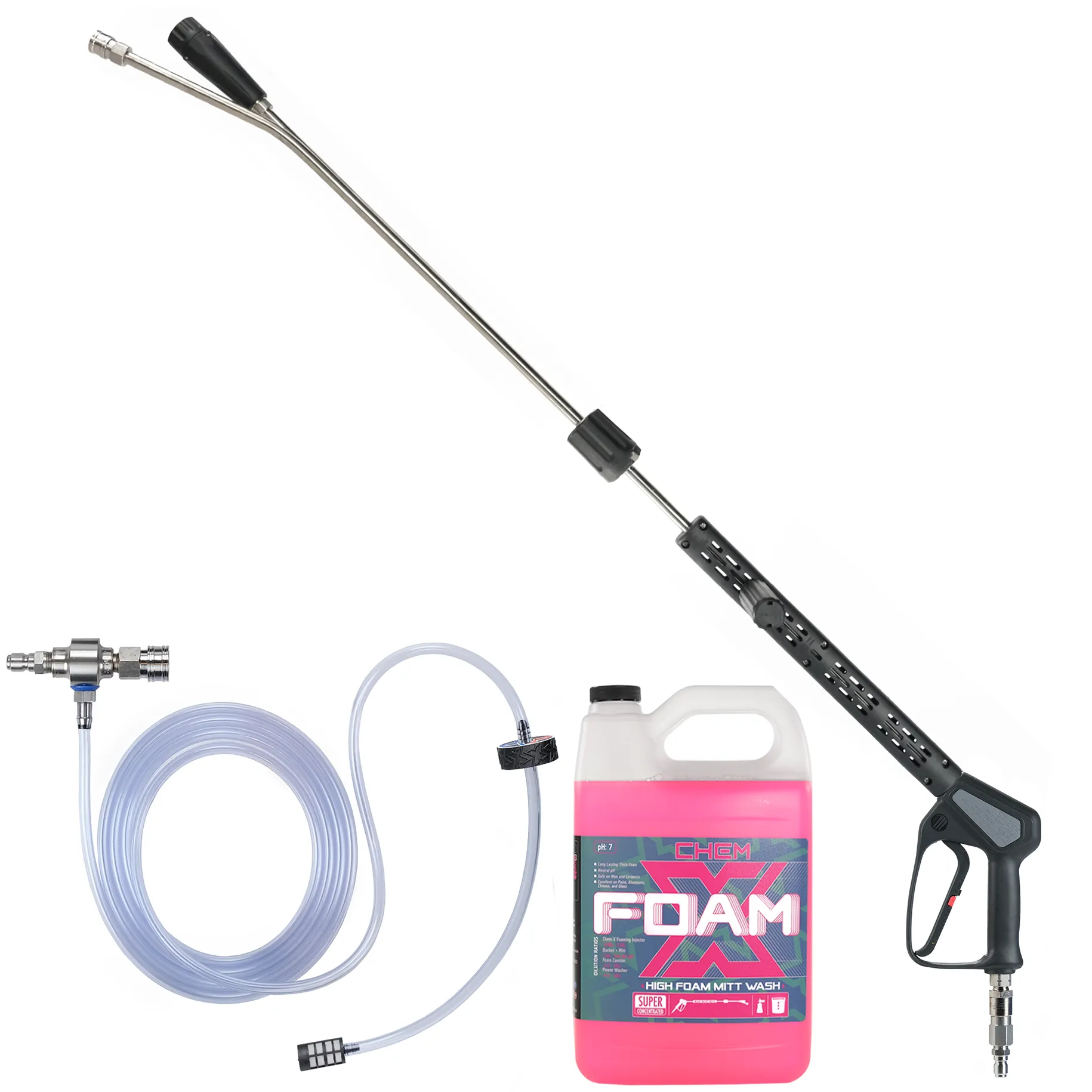

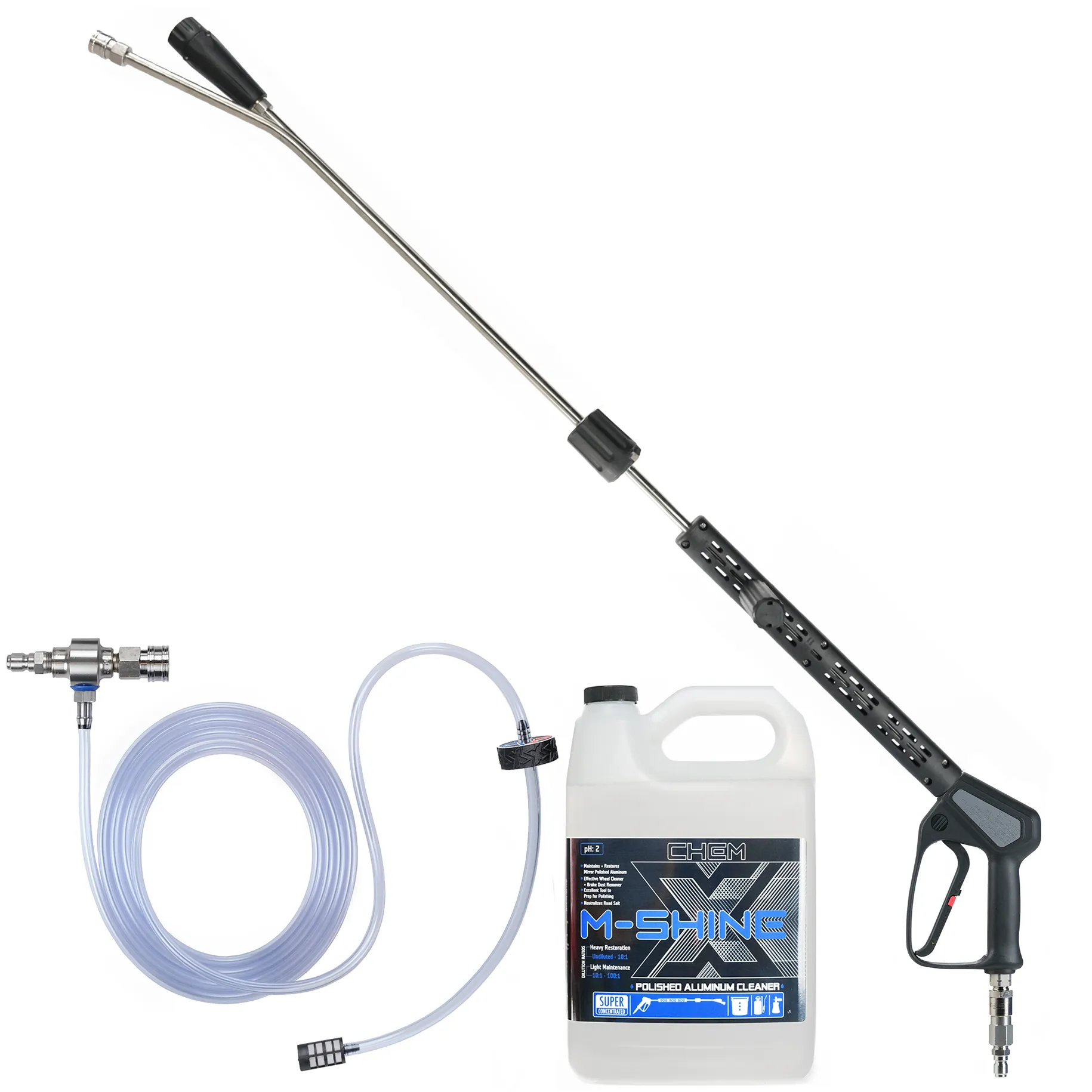

INCLUDES

1. Liquid Option: Choose One
2. Chem-X Foam Lance Built Complete - Your Choice of Length
3. Suttner ST-160 Single Foaming Chemical Injector
4. Chem-X Flow Cap Pick Up Tube

SUTTNER ST-160 Injector

The Suttner ST-160 Chemical Injector is the most efficient and durable foam injector available, with a dilution range from 10:1 to 200:1. It automatically dilutes the soap to a predetermined strength eliminating soap waste or pre-mixing. The ST-160 arrives pre-set by us to draw at 100:1(1%) dilution, the ideal strength for all of our super concentrated liquids.

Plug Play
Uses 4-5x Less Soap Than Traditional Style Injectors
9 Dosing Nozzles Included
Durable Stainless Steel Construction

*Other downstream injectors must be removed from your machine.
*Limited to 150' of power washer hose after the injector.
*ST-160 injectors come standard with a on the inlet and a on the outlet. QC orientation can be reversed upon request.

CHEM-X FOAM LANCE

The Chem-X Foam Lance was designed and hand built by Chem-X. We took the very best components and pieced them together in a layout with pure functionality and durability in mind. An almost fully stainless lance that is built to hold up in harsh environments. With this lance you can change between foam and rinse directly at the gun. Simply release the trigger and twist The Suttner ST-58 Change Over Valve a quarter turn to either rinse or foam. By far the best foam lance on the market!

1. Suttner ST-75 Foamer
2. Rolled Thread Stainless Steel Pipes
3. Sutnner ST-58 Roll Over Valve
4. Vented Grip With Side Handle
5. Suttner ST-2305
6. Mosmatic Inline DGV Swivel

YOUR CHOICE OF SOAP

: Our most extreme foaming mitt wash formulated to leave a polymer barrier on your vehicle that generates beading and protects the surface.

: An extremely flexible foaming truck wash that can tackle anything from a simple maintenance wash to heavy degreasing.

: Our touchless Si02 ceramic foam sealant. Adds an extremely durable hydrophobic layer of protection to any and all vehicles.

: A high foaming polished aluminum cleaner and maintainer.

: A high foaming mitt wash without any additives.

How to Install

1. Connect ST-160 injector after power washer and before your high psi hose. The ST-160 will be made ready with a stainless 3/8" quick connect plug on the inlet and a stainless 3/8" quick connect socket on the the outlet.

2. Place chemical pick up tube directly into soap.

3. Foam all of the things!

Injector will be set to run at 100:1 unless specified otherwise, this can be changed by simply changing metering tip inside injector barb.
If using a hot water machine, scale build up from your coil can plug injector or foam head. On start up always run with injector in rinse mode for about 30-60 seconds to flush out any build up.
If a jumper hose is needed to go from your power washer to ST-160 injector please see our selection of hoses in accessories.
