These CR25 high-stability carbon film resistors are suitable for all types of industrial and consumer applications and have a /- tolerance of 5%. The resistive element is a high-grade ceramic rod on which a homogenous pure carbon film is deposited by a vacuum heating process to produce electrical conductivity on the surface. All available resistors are in EIA standard colour coding and resistant to solvents.

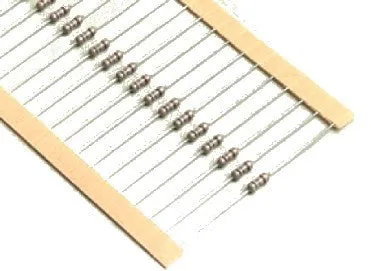

The resistors are supplied taped together and then rolled. The resistors are spaced 5mm apart on the roll and can easily be removed from the roll by tearing the tape to separate the appropriate quantity and then pulling away the tape.

See the list on the right for the available versions.  A zero-Ohm resistor is also available, which is a useful alternative to jumper or wire links on PCBs. All versions are supplied as a pack of 100, which offers excellent value.

Features:

• All varieties are CR25 0.25W carbon film resistors.
• Colour bands are EIA standard colour coding.
• The tolerance is /- 5%.
• They are taped and rolled with a 5mm spacing.
• They are supplied as packs of 100, offering great value.
• RoHS compliant.

Contains:

• 1 x 100 Packs Of CR25 0.25W Carbon Film Resistors.

Dimensions:

• Body Length: 6.5mm.
• Body Diameter: 2.5mm.
• Lead Length: 28mm.
• Lead Diameter: 0.6mm.
