Use Cases
- Multi-room streaming/local audio player
- Interactive art projects with audio requirement
- Arcade table projects with high quality, immersive audio
- Streaming (either from cloud or network storage) high-definition audio player
- Internet radio player with high-quality stereo audio
- Refit old radios and boomboxes (Roberts radios etc) with high-quality streaming audio
- And many many more?.

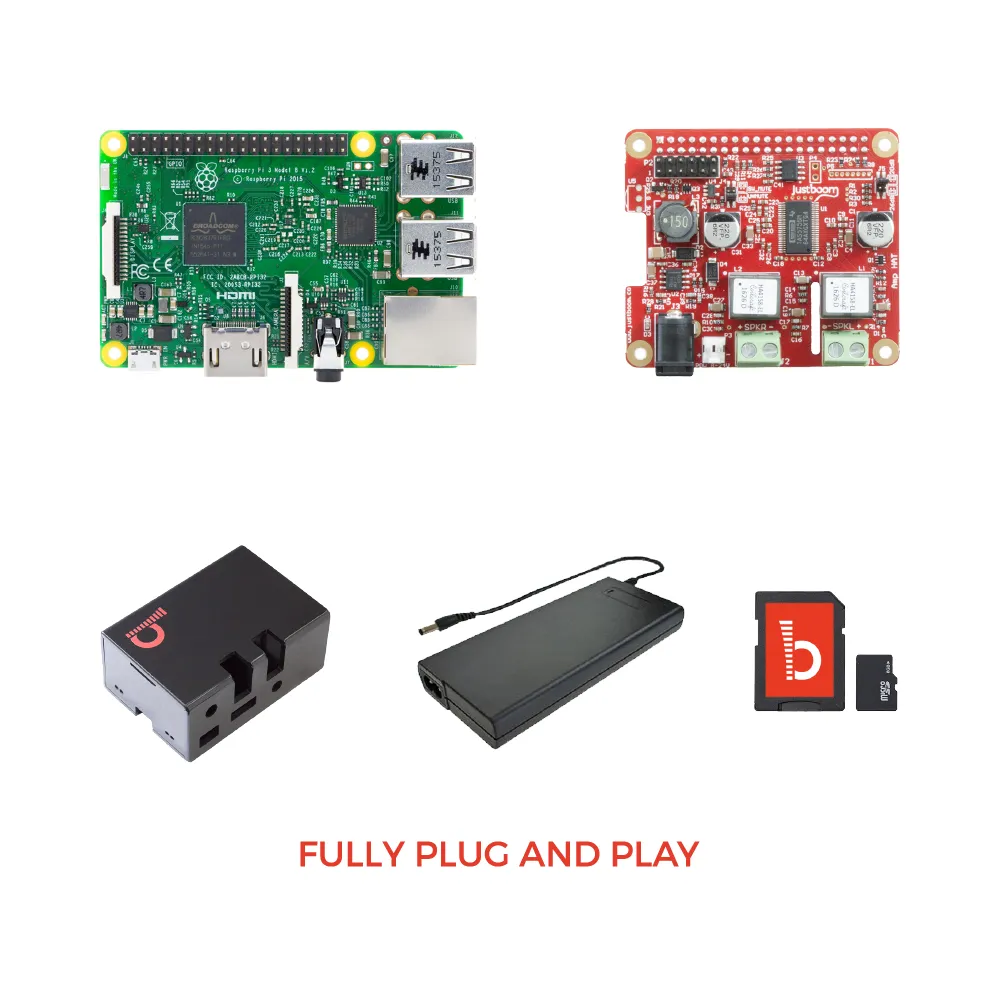

JustBoom Amp HAT Kit content
- Power Supply
Amp HAT Features
- Full high-quality audio ? 192kHz / 32bit
- 2 x 55 Watt peak output at 8 ohms (2 x 30 Watt RMS)
- Includes both a DAC and power amplifier ? just connect to your passive speakers
- Back-powers the Raspberry Pi over the GPIO (with full HAT compliant protection) at 2.5A so only one power supply required for the whole system.
- Plug and play compatibility for ease of use
- Hardware and software volume control from your Raspberry Pi
- Onboard, hardware jumpers for configuring mute and gain settings (jumpers could optionally be changed with switches)
- Mute/enable with GPIO22 (this can be overridden by using jumper J4)
- No soldering required
- This kit comes with a Raspberry Pi 3 Model B, however, the Amp HAT is still compatible with the Raspberry Pi A ,B and 2B. It's also compatible with the Raspberry Pi Zero, but we would recommend the for this purpose
- Mounting hardware included
- Optional IR receiver included in package
- Unused GPIO pins still accessible via unpopulated extension header
- The Raspberry Pi Amplifier is fully HAT compliant
- Full driver support in / NOOBS
- Compatiblewith / / / / / / / and others
